The WMS2 is perfectly suited for integration applications, including shop window displays, museums, boardrooms, digital signage, and entertainment venues, this video panel is a versatile solution for immersive visual experiences. A Novastar A8s-N receiving card is built-in allowing the WMS2 to be displayed horizontally or vertically when wall mounting.

Boasting a pixel pitch of 2.6mm and a pixel density of 147,456 /m2, the WMS2 guarantees exceptional definition, even at close viewing distances. The RGB SMD1515 color mixing LEDs produce a vibrant spectrum, supported by a brightness of 800 nits. With a wide viewing angle of 160-degrees (horizontal) by 140-degrees (vertical) and a rapid pixel refresh rate of 3840 Hz, this video panel ensures a captivating and smooth visual performance.

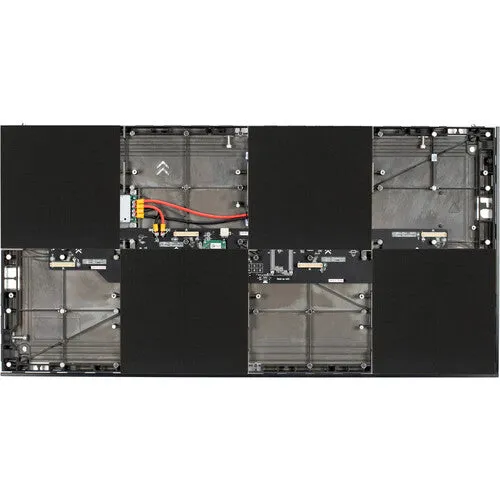

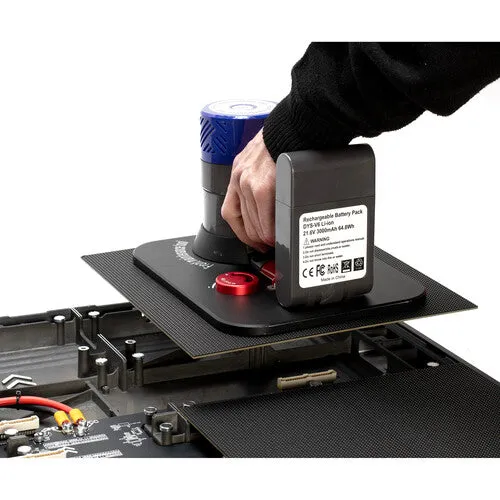

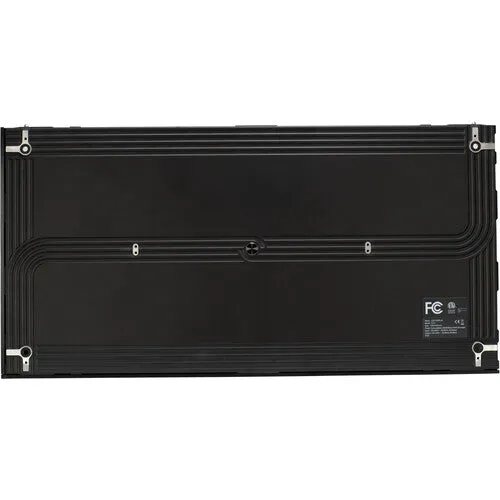

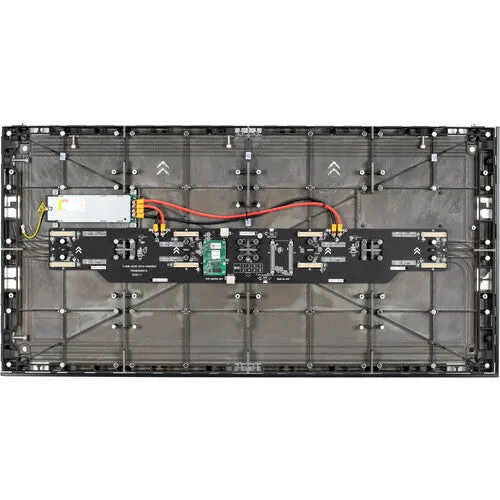

Measuring 39.3 x 19.9”, the WMS2 consists of eight individual modules, each with 96 x 96 pixels, offering flexibility in arrangement. Each panel’s overall resolution is 384 x 192 pixels. The panel’s frame assembly features a secure locking mechanism, allowing for the seamless joining of adjacent panels. Installation is simplified with mounting points for direct wall installation. The front-serviceable design enables easy module replacement, ensuring uninterrupted operation. The maximum number of panels that can be linked is 15 panels in the vertical direction. There is no limit on the number of panels that can be linked in the horizontal direction.

With a slim 1.3” thickness and a weight of 21 lb, the WMS2 is a lightweight and compact solution. Its versatility extends to wall-mounting, hanging, or stacking, both horizontally or vertically, catering to various installation preferences.

Features

• Single Panel for Seamless Video Wall
• 2.6mm Pixel Pitch
• 147,456 /m² Pixel Density
• RGB SMD1515 Color Mixing LEDs
• 800 nits Brightness
• 160° Horizontal Viewing Angle
• 140° Vertical Viewing Angle
• Built-In Novastar A8s-N Receiving Card

Specifications
