Experience The Ultimate Indoor Comfort With Daikin's Energy-Efficient And Eco-Friendly Air Conditioning Units.

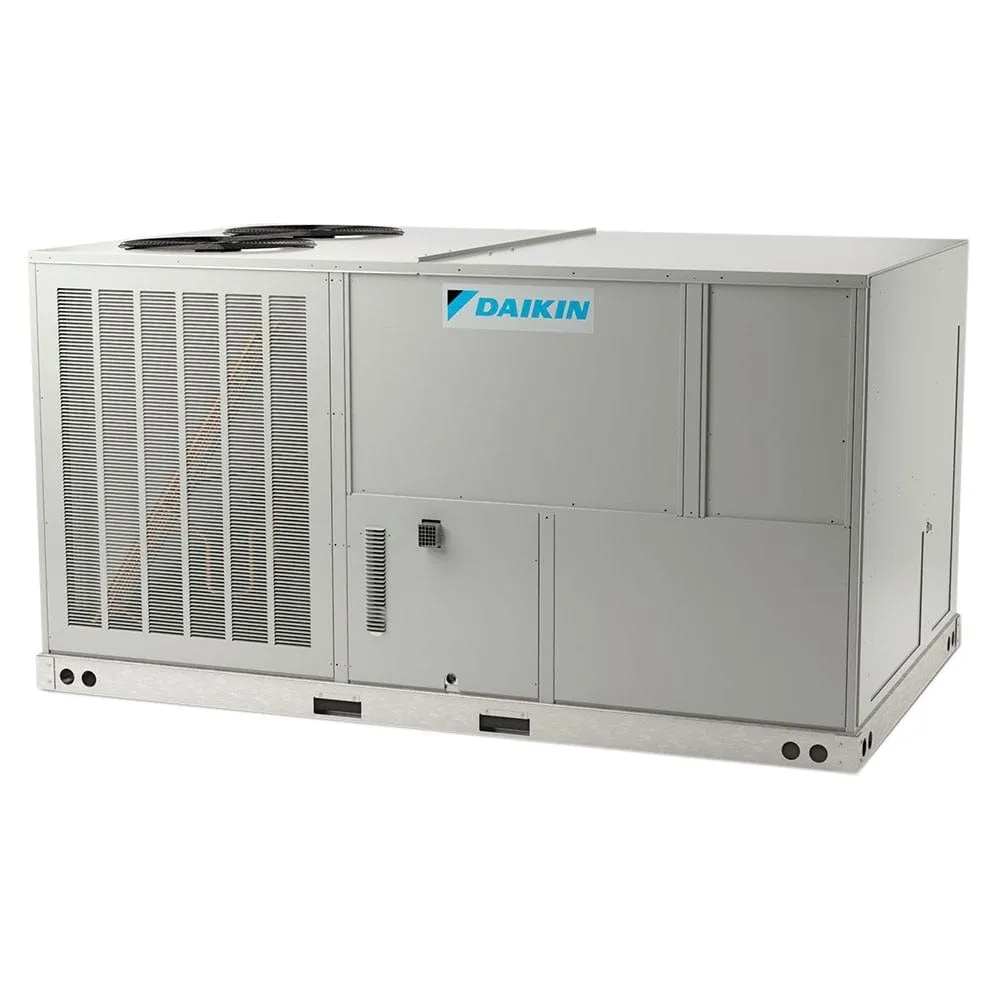

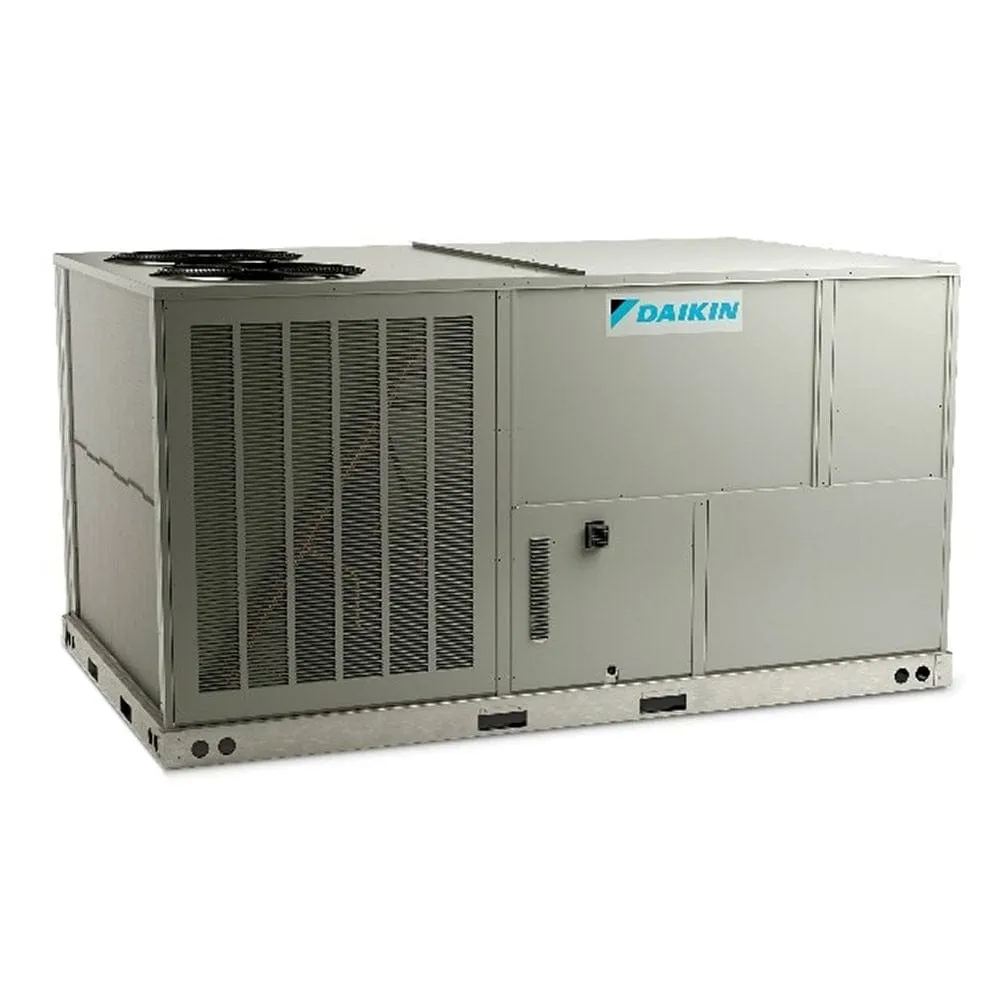

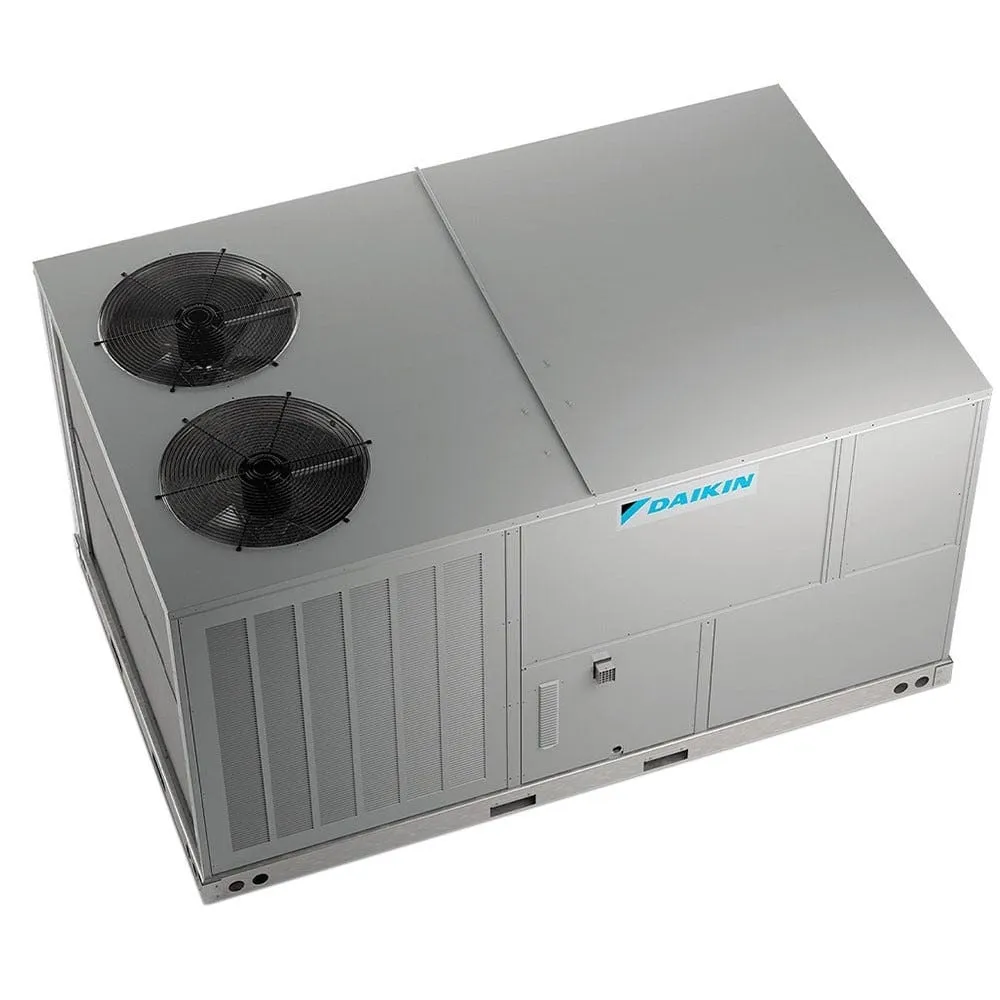

The Daikin DCC102 Commercial Package Air Conditioner combines serious operating capacity with energy efficient HVAC technology.
The heavy-gauge, galvanized steel cabinet built with convertible airflow orientation in mind contains high-efficiency compressors, dual-stage cooling, copper tube/aluminum fin coils, high-capacity filter drier, 24-volt terminal strip, full perimeter rail, and a built-in filter rack with standard 2 inch filters. A 5-Year Parts Warranty protects the investment, and it is both AHRI Certified and ETL Listed.
See Features Below:
-
R-410A Chlorine-Free Refrigerant
-
High-Efficiency Scroll Compressors
-
Two-stage Cooling
-
Copper Tube / Aluminum Fin Coils (7½ - 10 Ton)
-
Micro-Channel Indoor & Outdoor Coils (12½ Ton)
-
Power Block For Field Wiring
-
High And Low-pressure Switches
-
High-Capacity, Steel-Cased Filter Drier
-
Heater Kits With Single-Point Entry
- 24-volt terminal strip
Specifications
| Model | DCC102XXX3VXXX |
|---|---|
| AHRI Number | 7370923 |
| Air Flow Direction | Downflow, Horizontal |
| Avg Coverage Area | 3,000 Sq Ft |
| Blower Motor | Multi Speed |
| Compressor | Single Stage |
| Cooling Capacity | 6 Ton |
| EER | 11.3 |
| Electrical Phase | 3-Phase |
| Heat Strip Compatibility | Up to 45 kW |
| Max Overcurrent Protection | 50 amps |
| Product Height (in) | 53.4 |
| Product Length (in) | 61.7 |
| Product Width (in) | 100 |
| Voltage | 240 |
| Warranty | 5 Year Parts |
| Weight (lbs) | 1085.0000 |
Additional Information
-
Heavy-Gauge, Galvanized Steel Cabinet With UV-Resistant Powder-Paint Finish
-
Built-In Filter Rack With Standard 2” Filters
-
Convertible Airflow Orientation
-
Easy To Service
-
Full Perimeter Rail
-
Sloped Drain Pan
-
24-Volt Terminal Strip
-
Ahri Certified; ETL Listed
