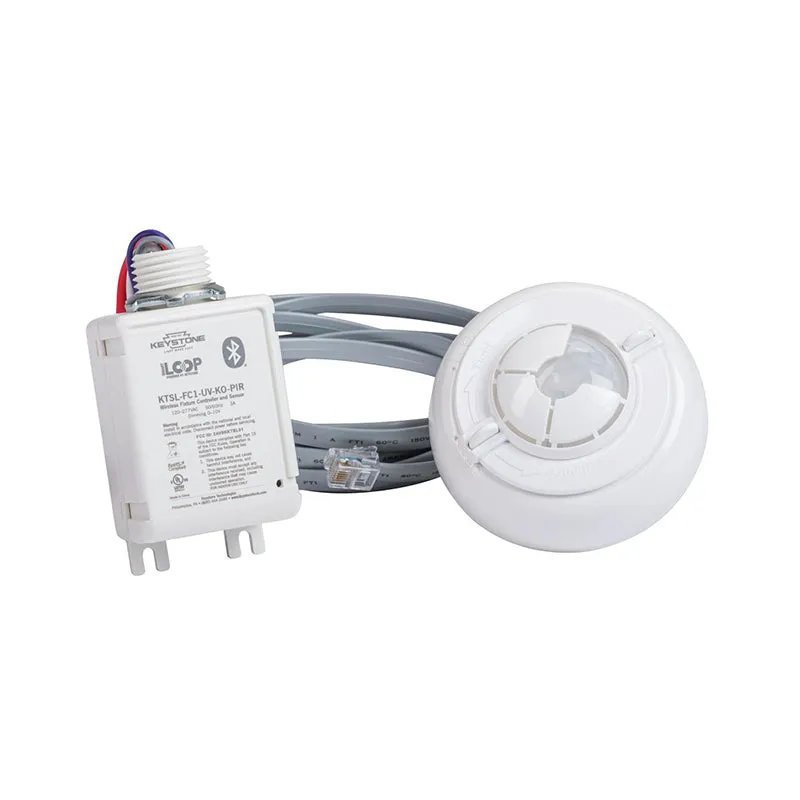

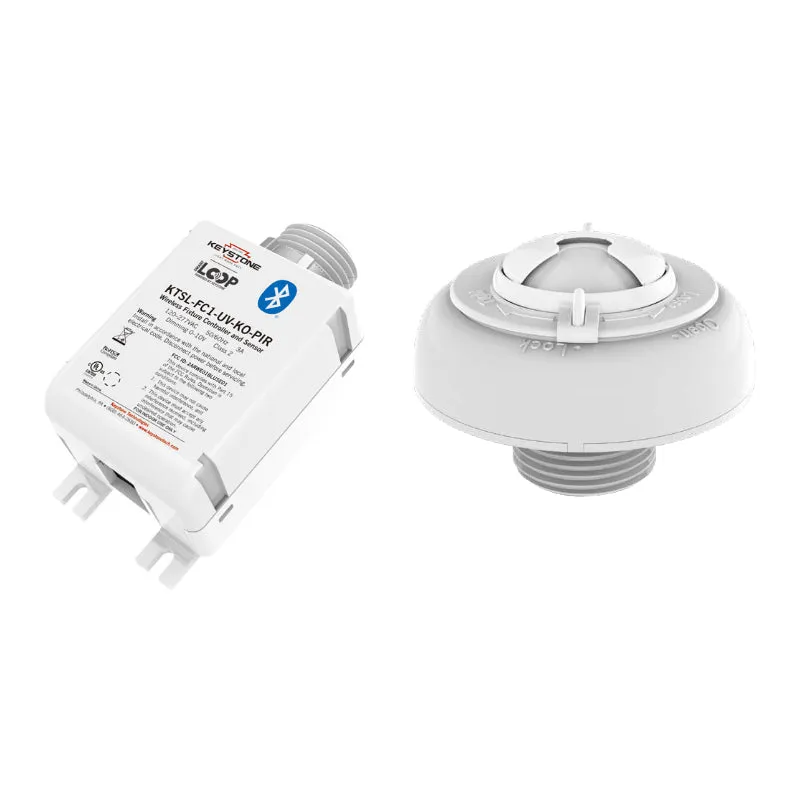

Bluetooth Mesh Wireless Fixture Controller for SmartLoop System with remote mountable daylight and PIR motion sensor. 120-277V. 3A Max Load with 0-10V Dimming.

Features

• Input Voltage: 120-277VAC
• Use of a relay, 0–10V dimming, and a 1/2" knock-out enable compatibility with many standard industry fixtures
• Commissioned via SmartLoop mobile app for iPhone and Android
• Class 2 daylight and PIR motion sensor is remote mountable via 1" trade size knockout
• Controlled via SmartLoop mobile app, keypad, and sensors
• Features of Smart loop Mobile app- High End Trim, Vacancy, Occupancy, Daylight Harvesting, Scheduling, and Grouping
• Fixture controller and sensor connect via a convenient RJ-12 cable
• Utilizes Bluetooth mesh technology for reliable and secure wireless communication
• Intelligent relay control software reduces wear to extend relay life
• Power outage recovery defaults to automatic on state
• Indicator LED communicates device status
• Lens cover accessory with breakaway tabs included for specialized reception pattern needs

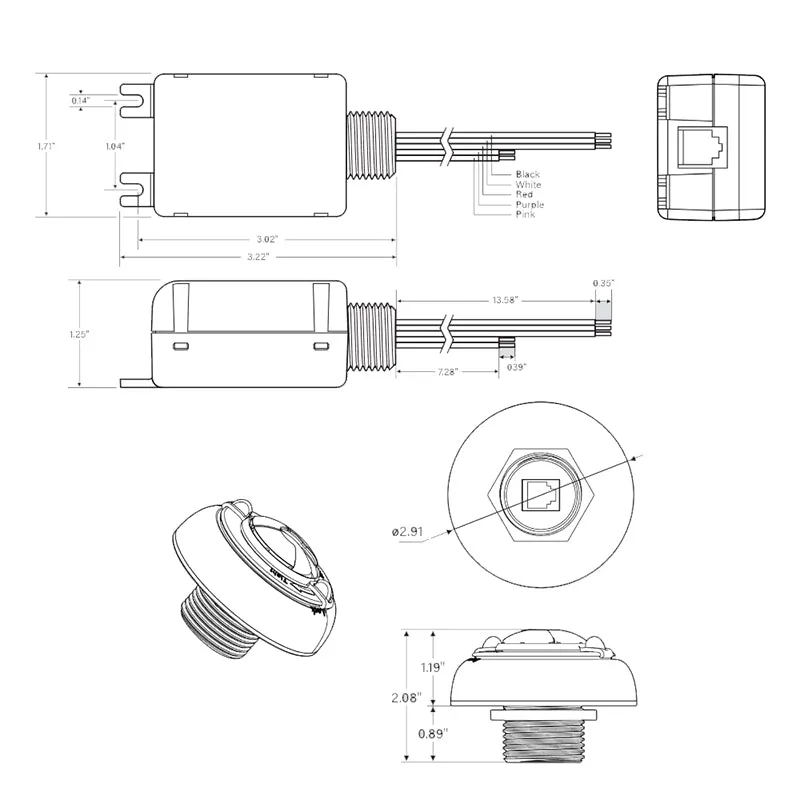

Dimensions

• Width: 2.91"
• Height: 2.08"

Estimated Life

• Lifetime: 50,000 hrs
