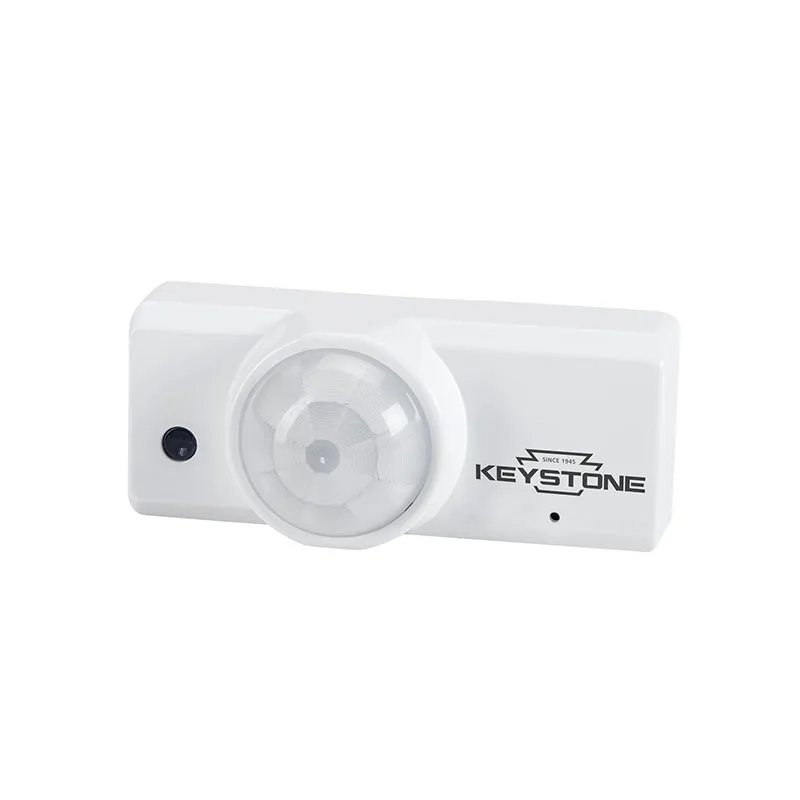

Bluetooth mesh wireless low voltage individual fixture controller for SmartLoop system with integrated daylight and PIR motion sensors, 12V, 0-10V Dimming.

Features

• Input Voltage: 10-15VDC
• Small form factor for unobtrusive installation
• 0-10V control wires for integration with most commercially available fixtures
• Installs via 3/8” drilled hole on fixture sheetmetal. Simply drill, route the wires and threaded collar through, and tighten nut to lock into place
• Driver should be dim-to-off, no relay control on sensor
• Commissioned via SmartLoop mobile app for iPhone and Android
• Controlled via SmartLoop mobile app, keypad, and sensors
• Utilizes Bluetooth mesh technology for reliable and secure wireless communication
• Power outage recovery defaults to automatic on state

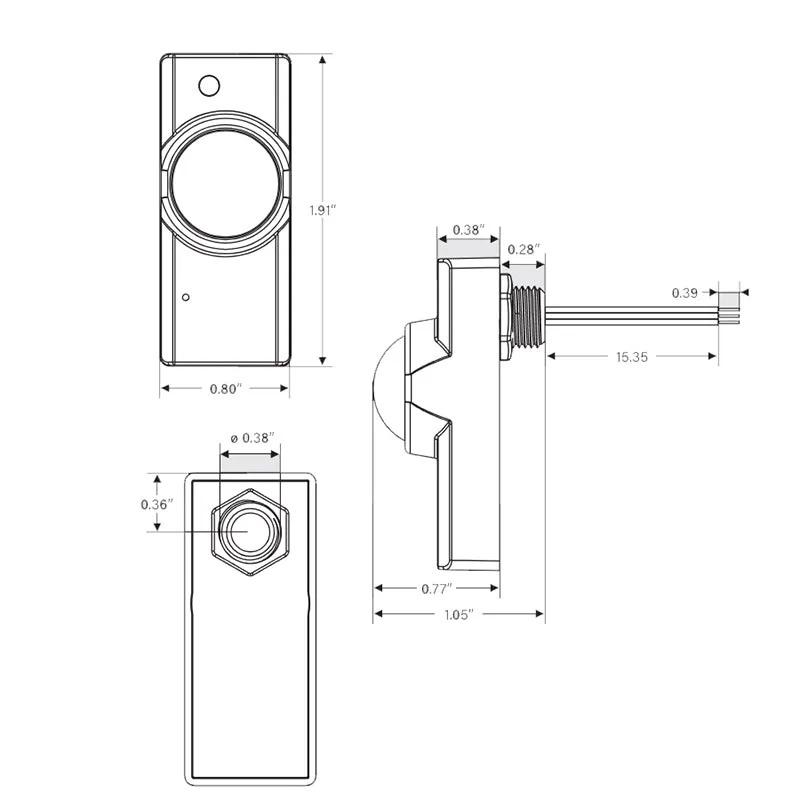

Dimensions

• Length: 1.91"
• Width: 0.8"
• Height: 1.05""

Estimated Life

• Lifetime: >100,000 hrs
