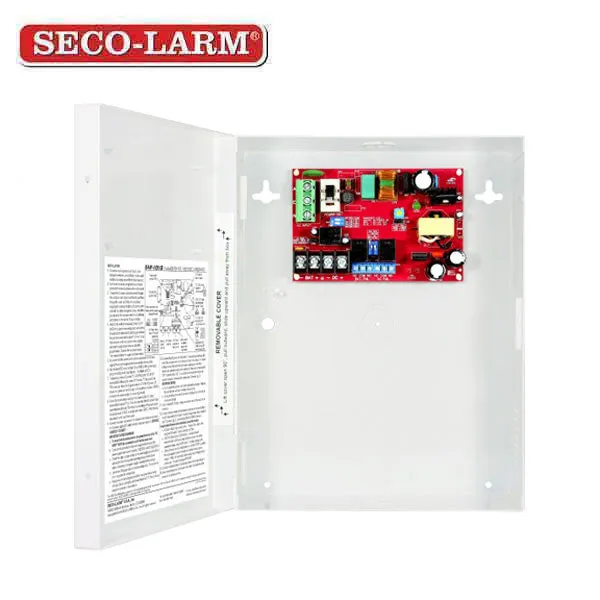

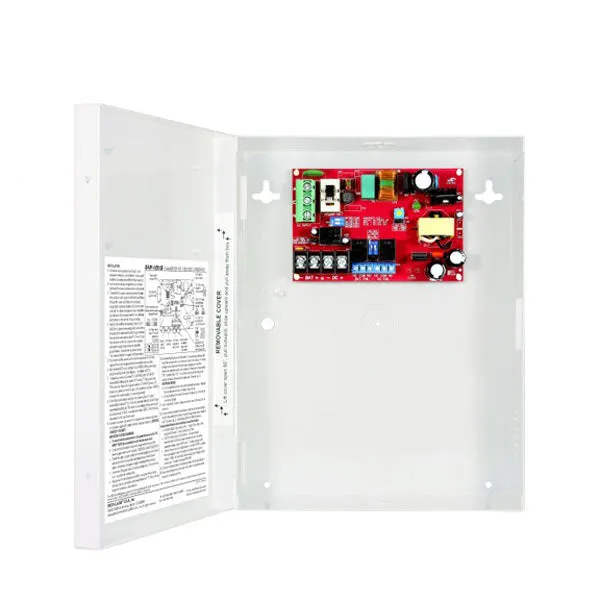

SLM-EAP-1D1Q

The SECO-LARM EAP-1D1Q power supplies are specifically designed for an access control system's electronic locks and accessories. These power supplies centralize the power sources of access control equipment. They include two supervision relays that can be used to integrate with other systems such as an alarm control panel. Robust fault response and indication also include gradual shutdown on output overload as well as immediate shutdown on output short, signaled by a flashing red LED and with auto-recovery once output short or overload is removed.

Features

• Input 110~240 VAC, fused at 3.15A
• Filtered and electronically regulated output
• AC Input and DC output LED status indicators
• Adjustable output voltage to compensate for voltage drop
• AC power failure supervision relay
• Overcurrent fuse-protected AC input
• Automatic shutdown for overcurrent / short-circuit protection
• 12/24 VDC Outputs, field selectable
• Battery failure / low battery supervision relay
• Built-in backup battery charger (Batteries not included)
• Automatically switch to backup battery if AC fails
• Selectable 2.2k3 End-of-Line (EOL) resistor for AC failure and battery failure supervision relays
• Selectable delay timer (5sec, 5min, 5h) for AC failure supervision relay via DIP switch



Power

• Operating Input voltage: 110~240 VAC

• Field-selectable 12 or 24 VDC output

• Total continuous output current: 3A@12VDC, 1.5A@24VDC

• AC Input fuse rated at 3.15A ( glass fuse, AC)
