Product Details
＋

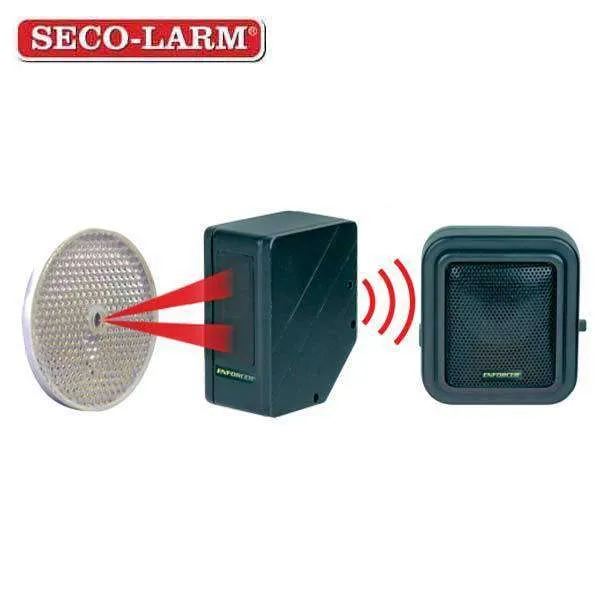

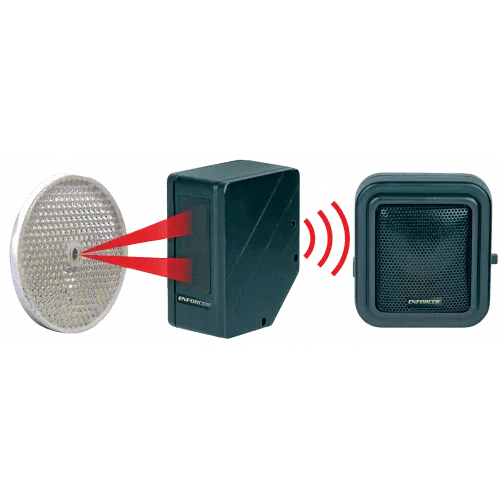

- For monitoring a driveway or use as an entrance indicator
-
No wiring required between the sensor and speaker; when tripped, the sensor wirelessly transmits to any
programmed speaker - Weatherproof IR photoelectric beam sensor for outdoor use
- Speaker makes "ding-dong" or siren sound if beam is interrupted
- Speaker volume can be adjusted or turned off
- When in siren mode, sounding time is adjustable from 3~30 seconds
- Connect additional speakers to the sensor wirelessly (one speaker included)
-
Includes the following:
- Weatherproof wireless reflective sensor (Tx)
- Wireless speaker (Rx)
- Reflector
- Two power adapters
- Three mounting brackets: One each for the sensor, reflector,and speaker
| Type | Wireless Weatherproof Entry Alert System |
| Operating Frequency | 433.92 MHz |
| Operating voltage | Sensor & Speaker- 12VDC (adapter included) |
| Range | Sensing- Up to 22ft (7m), Wireless- Up to 328ft (100m) |
| Operating Temperature | 32º~122º F (0º~50º C) |
| Current Draw | Sensor- Active: 20mA, Standby: 5mA; Speaker- Active: 100mA, Standby: 25mA |
| Light Source | IR LED |
| Speaker Volume | 0~90 dB |
| Alarm Time Range | 3~30 s (Adjustable) |
| Dimensions | Sensor- 3-1/4" x 2-9/16" x 1-1/2" (82 x 65 x 37mm), Speaker- 3-1/4" x 2-15/16" x 1-9/16" (83 x 75 x 40mm), Reflector- 2-3/8" x 2-1/16" x 3/8" (60 x 52 x 9mm) |
| Speaker Output | Chime / Off / Alarm (selectable) |
