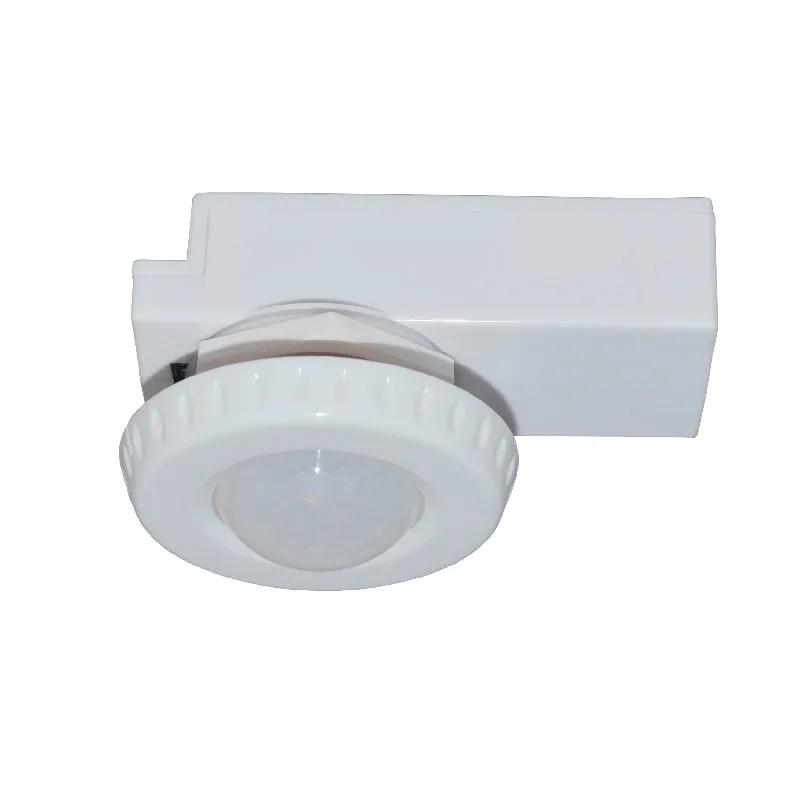

The WEC-3PDR-52 mounts in an outdoor lighting fixture and provides multi-level control based on motion and/or daylight contribution.  It controls 0-10 VDC LED drivers or dimming ballasts, as well as non-dimming ballasts and, with an Fresnel Lens, is rated for wet and cold locations. All controlparameters are adjustable via a wireless configuration tool capable of storing and transmitting sensor profiles.

Features

• Power supply: 120/277VAC 50/60Hz
• Resistive/Halogen - 800W/1200W@120/277V
• Fluorescent Ballast - 660W/1200W@120/277V
• Electronic Ballast (LED/CFL) - 5A/5A@120/277V
• Detect Area: 360°, maximum coverage 60’ diameter from 40’ height

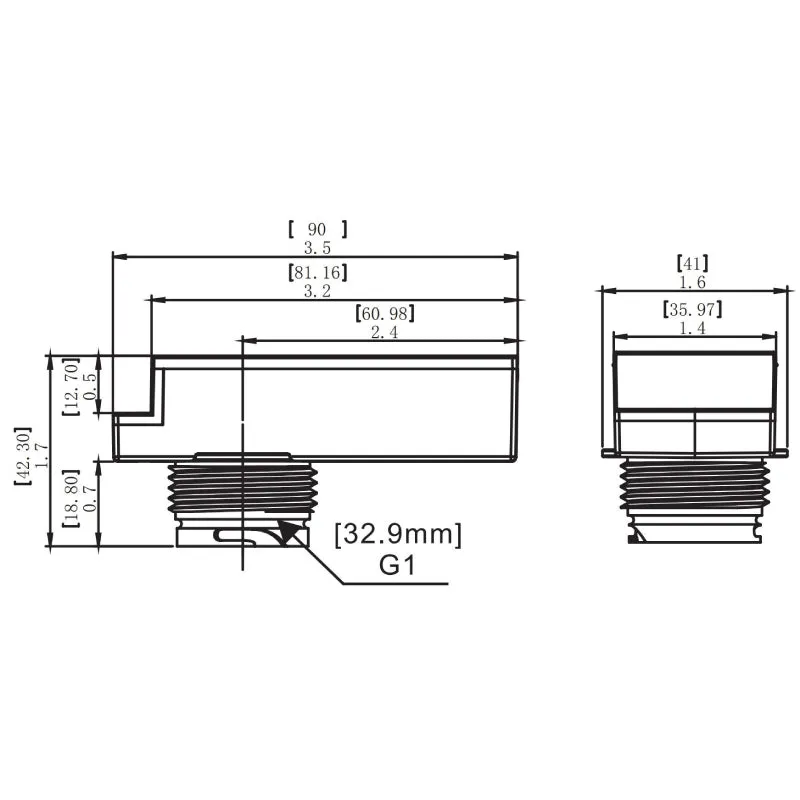

Dimensions

• Length: 3.5"
• Width: 1.6"

• Height: 1.7"
